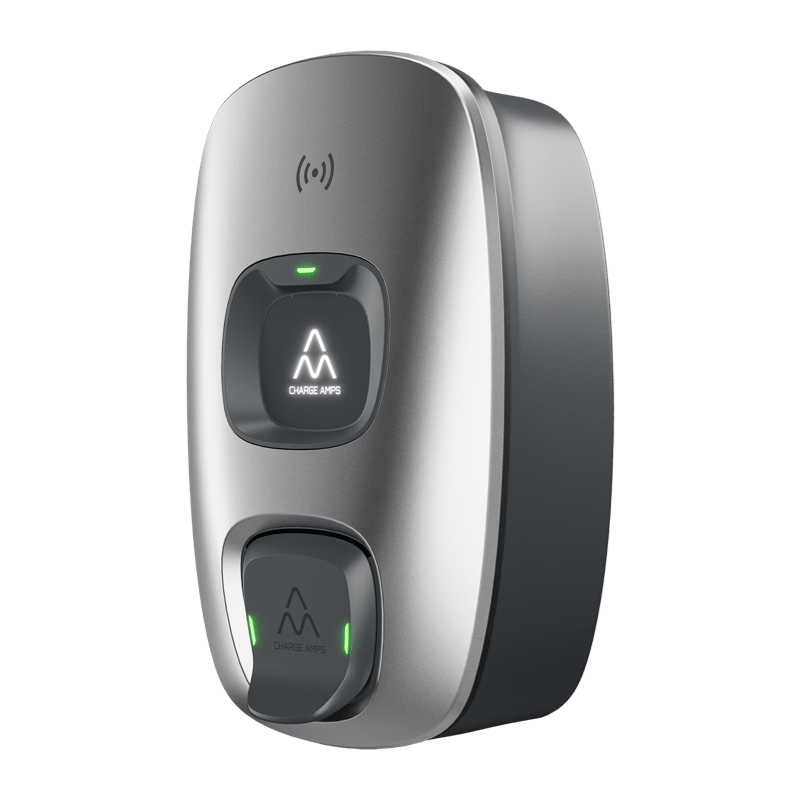

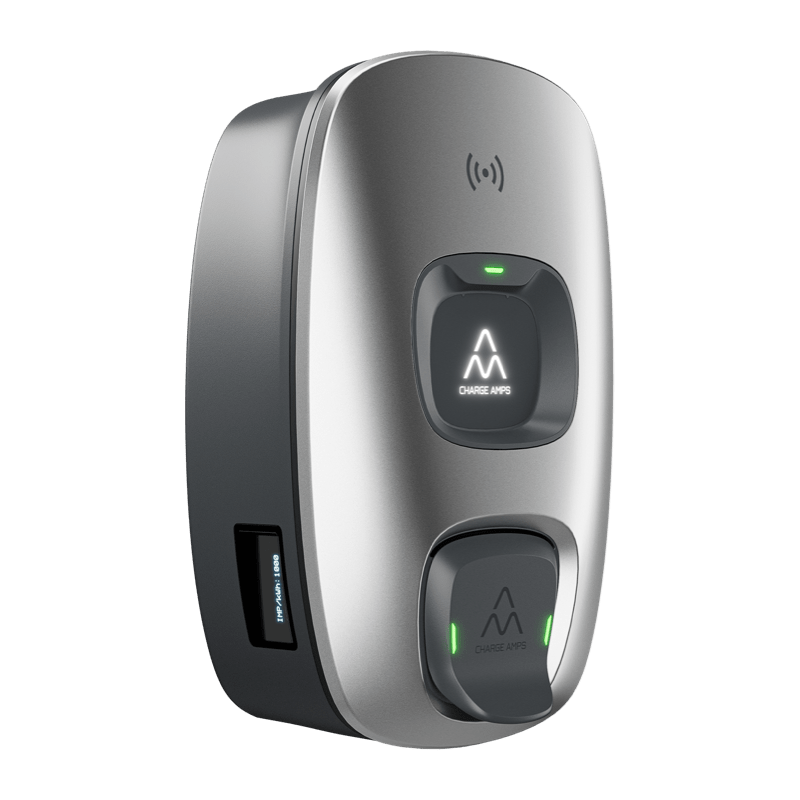

Charge Amps Dawn 22 kW

Charge Amps Dawn is the latest charger from the Swedish company Charge Amps. This user-friendly and intelligent charger is designed to combine technology with ease of use and break new ground in the market. With Charge Amps Dawn you get free 4G connection for smooth and easy use of all funtionality.

€895.00

Configure and order

EV Charger Icon In stock

Estimated delivery time for Charge Amps Dawn 22 kW is 4-6 days. Find complete terms of delivery and terms of purchase here.

Configure and order
Technical specification

Below you can see the full technical specification for Charge Amps Dawn 22 kW. Do you have any questions? Contact our support!

  • Number of phases: 1 & 3-phase
  • Max charging power: 22 kW
  • Cable or outlet: Outlet
  • IP-code: IP54
  • Built-in energy measurement: Yes
  • Earth fault breaker: RCD type B
  • Warranty: 3 years
Charge Amps Dawn 22 kW
  • Manufactured in: Sweden Charge Amps Dawn 22 kW Sweden
  • RFID-reader: Yes
  • Adjustable charging power: Yes
  • Load balancer: Yes, addon
  • OCPP: Yes
  • App: Yes
  • Connectivity: WIFI & 4G

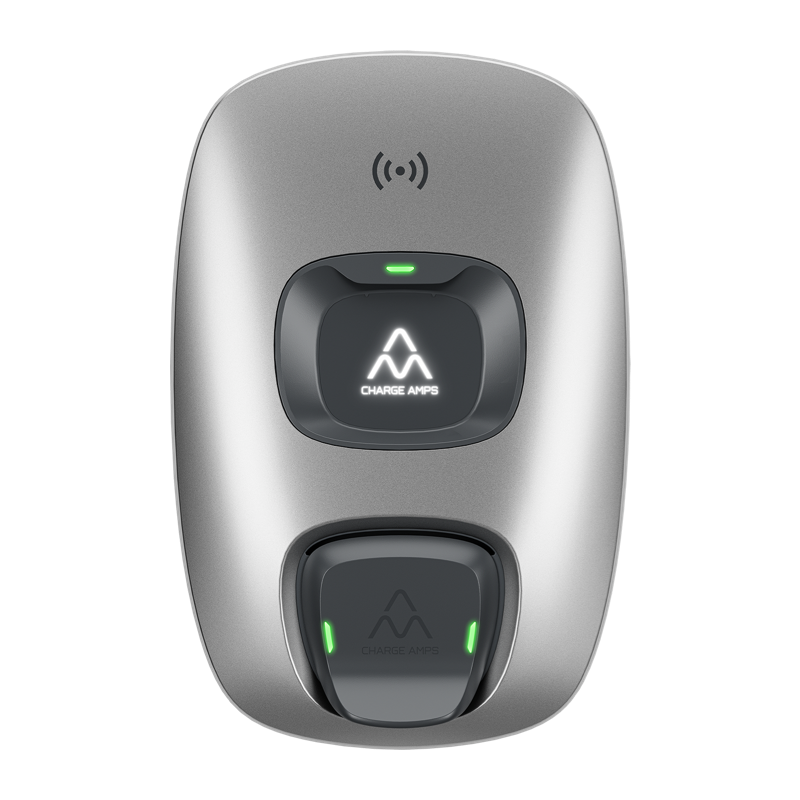

Charge Amps Dawn EV Home Charger

Charge Amps Dawn - Certified MID-meter

The MID meter in Charge Amps Dawn provides one hundred percent transparency to the end user by measuring and displaying the current electricity consumption. It also provides the opportunity to see exactly how many kW are used to charge the electric car at each charge.

Charge Amps Dawn EV Home Charger Installation

Future-proofed and prepared for tomorrow's technical challenges

Charge Amps Dawn is always up-to-date with the latest software thanks to WiFi and 4G which enables the storage of all statistics in the cloud. The charger is also fully OCPP compatible, which gives you the opportunity to connect it to other cloud services. Order Charge Amps Dawn today and gain complete control over your charging!

How fast does Charge Amps Dawn 22 kW charge my

Brand
Car brand
Model
Car model
?
Charging Time Charge Amps Dawn | €895.00

+

Charging Time Charge Amps Dawn | €895.00

=

0:00 T

Charge time (0-100%)

0 kW

Onboard capacity

0

Max charging current

Typ ?

Car outlet

0 kWh

Battery capacity

We have helped thousands of EV owners
charge their car at home

Evify Review

4.6 out of 5 - Based on +2000 reviews.

Evify Contact

How may we assist you today?

Our experts are prepared to assist you with any inquiries regarding your future charging solution. Click the button below to connect with us!

We're here to help!

Fill out the form below and one of our experts will get in touch with you as soon as possible.

Get started in no time
1
Guidance & Ordering

Find the best EV charger for your car and home. Have any questions? Our customer service team is here for you! When you're ready, place your order online.

2
Installation

Contact your local electrician and let them know you want your new EV charger installed. Installing a EV charger is a simple task for any certified electrician.

3
Start charging

Experience the benefits of faster, cost-effective, and secure charging right from the comfort of your home.

More recommended EV chargers
BESTSELLER Zaptec Go EV Home Charger
  • EV Charger Icon 1 & 3-phase
  • EV Charger Icon 22 kW
  • EV Charger Icon Outlet
Zaptec Go 22 kW

Zaptec Go is the award-winning home charger that suits all cars. With traditional Scandin…

  • €595.00
Learn more
BESTSELLER Charge Amps Aura EV Charger
  • EV Charger Icon 1 & 3-phase
  • EV Charger Icon 22 kW
  • EV Charger Icon Outlet
Charge Amps Aura 22 kW

The complete EV charger that charges two cars at the same time with up to 22 kW per outle…

  • €1,995.00
Learn more
BESTSELLER Easee Charge Lite 11 kW
  • EV Charger Icon 1 & 3-phase
  • EV Charger Icon 11 kW
  • EV Charger Icon Outlet
Easee Charge Lite 11 kW

Charge Lite is a brand new, future-proof EV charger that guarantees a smart charging expe…

  • €645.00
Learn more
  • EV Charger Icon 1 & 3-phase
  • EV Charger Icon 14/22 kW
  • EV Charger Icon Cable 6m
amina S

Discover the latest charger from amina that comes with a 5-year warranty, timeless design…

  • €545.00
Learn more

Charge Amps Dawn 22 kW

FAQ
  • EV Charger Charge Amps Dawn 22 kW Icon Does Charge Amps Dawn 22 kW have load balancing?

    Yes, Charge Amps Dawn 22 kW is available at Evify with load balancing.

  • EV Charger Charge Amps Dawn 22 kW Icon What car brands & models are Charge Amps Dawn 22 kW suitable for?

    Charge Amps Dawn 22 kW has no fixed cable and fits perfectly with all cars in Europe.

  • EV Charger Charge Amps Dawn 22 kW Icon How much does it cost to install Charge Amps Dawn 22 kW?

    The cost of installing Charge Amps Dawn 22 kW vary from country to country with an average around €300. Installing a EV charger is a simple and quick job for any certified electrician.

  • EV Charger Charge Amps Dawn 22 kW Icon Can Charge Amps Dawn 22 kW be placed outdoor?

    Yes, Charge Amps Dawn 22 kW have IP-code: IP54 and can therefore be placed outdoors in the Nordic climate.

    This is what different IP classifications actually mean:

    IP44: Protection against the penetration of solid objects larger than 1 millimeter and protected against splashing water from all angles.
    IP54: Dustproof and protected against splashing water from all angles.
    IP55: Dustproof and protected against low-pressure water jets from all angles.
    IP66: Dustproof and protection against strong flushing.

    IP classification is a classification for how well the enclosure protects the electronic equipment in demanding environments.

  • EV Charger Charge Amps Dawn 22 kW Icon What is the expected delivery time for Charge Amps Dawn 22 kW?

    We offer delivery within 4-6 days all over the EU & EEA for Charge Amps Dawn 22 kW.

  • EV Charger Charge Amps Dawn 22 kW Icon How fast can you charge a car with Charge Amps Dawn 22 kW?

    Charge Amps Dawn 22 kW has a maximum charging power of 22 kW. What determines how quickly you can charge your car at home is the EV chargers maximum charging power and your car's on-board capacity. If you look a little bit furhter up on this page, you can see exactly how fast Charge Amps Dawn 22 kW charges your car by selecting it in the menu.

    Charging times from 0-100% for various example cars with Charge Amps Dawn 22 kW:

    Kia E-niro: 5 hours and 49 minutes.
    Audi E-tron: 8 hours and 38 minutes.
    MG ZS EV: 6 hours and 44 minutes.
    Polestar 2: 7 hours and 5 minutes.
    Toyota RAV 4: 2 hours and 26 minutes.
    Volkswagen ID4: 7 hours and 0 minutes.
    Mercedes EQA: 6 hours and 2 minutes.
    Hyundai Ioniq 5: 6 hours and 36 minutes.
    Skoda Enyaq IV80: 7 hours and 27 minutes.
    Volvo XC60 Recharge: 3 hours and 11 minutes.
    Renault Zoe (52 kWh): 2 hours and 21 minutes.
    Tesla Model 3 (50 kWh): 4 hours and 32 minutes.

    If, against the odds, you choose to charge your car in a regular electrical outlet (Schuko), the theoretical maximum power is 2.3 kW which with a car that has an 80 kWh battery gives a charging time from 0-100% of: 34 hours and 46 minutes.

EV Home Charge Icon
Free shipping Fast delivery all over EU & EEA
EV Home Charge Icon
Free returns 30 days money-back guarantee
EV Home Charge Icon
Support We're here to help you all the way

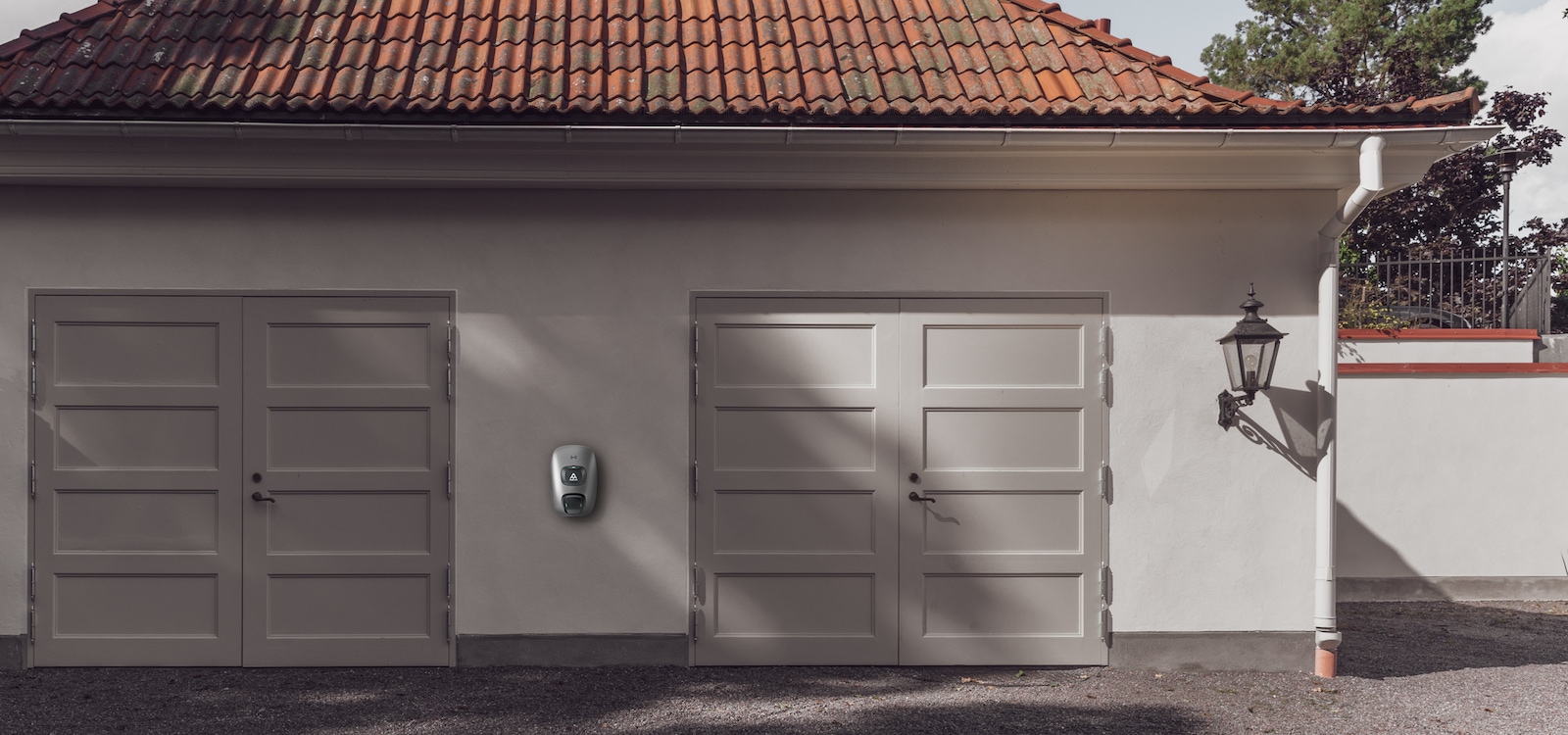

Charging Time EV Charger Charge Amps Dawn
Information regarding charging times – Charge Amps Dawn 22 kW

What determines how quickly you will be able to charge your car at home with a EV charger is the car's on-board capacity, the chargers capacity and the house main fuse, the chargers fuse and the wiring the charger is installed with. It is always the weakest link between these that determines the final effect.

How much power can I get based on the house's main fuse?

Below you can see what power you can get from a EV charger depending on your main fuse in the house. Note that this is the maximum power you can get out and not the guaranteed or constant power.

Without load balancer
House main fuse Chargers fuse Max charging power 1-phase Max charging power 3-phase
35 A 32 A 7,4 kW 22 kW
25 A 20 A 4,6 kW 14 kW
20 A 16 A 3,7 kW 11 kW
16 A 10 A 2,3 kW 6,9 kW
With load balancer
House main fuse Chargers fuse Max charging power 1-phase Max charging power 3-phase
35 A 32 A 7,4 kW 22 kW
25 A 25 A 5,7 kW 17 kW
20 A 20 A 4,6 kW 14 kW
16 A 16 A 3,7 kW 11 kW
Load balancing

Load balancing takes place when the charger throttles the current for charging according to what is available at the moment. How much current is available is limited by the house's current electricity consumption and the capacity of the power plant (which is in turn limited by the main fuse).

Load balancing is achieved with a power monitor that measures how much power is used in the house at a given time. Some power monitors have current sensors that are physically mounted on the phase conductors for incoming electricity in the house's facade meter cabinet, another type of power monitor receives this information directly from the electricity meter via a so-called Smart-meter.

Examples

Here below you can easily see a couple of different examples of possible maximum charging effects for different conditions. The two values in "Maximum charging power" are with/without load balancing.

House main fuse Car onboard charger Charger capacity Maximum charging power
16 A 3-phase 16 A (11 kW) 22 kW 6,9 kW / 11 kW
20 A 3-phase 16 A (11 kW) 11 kW 11 kW / 11 kW
25 A 3-phase 32 A (22 kW) 11 kW 14 kW / 17 kW
35 A 3-phase 32 A (22 kW) 22 kW 22 kW / 22 kW
16 A 1-phase 16 A (3,7 kW) 11 kW 2,3 kW / 3,7 kW
20 A 1-phase 16 A (3,7 kW) 11 kW 3,7 kW / 3,7 kW
20 A 1-phase 32 A (7,4 kW) 22 kW 3,7 kW / 4,6 kW
25 A 1-phase 32 A (7,4 kW) 22 kW 4,6 kW / 5,7 kW
35 A 1-phase 32 A (7,4 kW) 22 kW 7,4 kW / 7,4 kW
